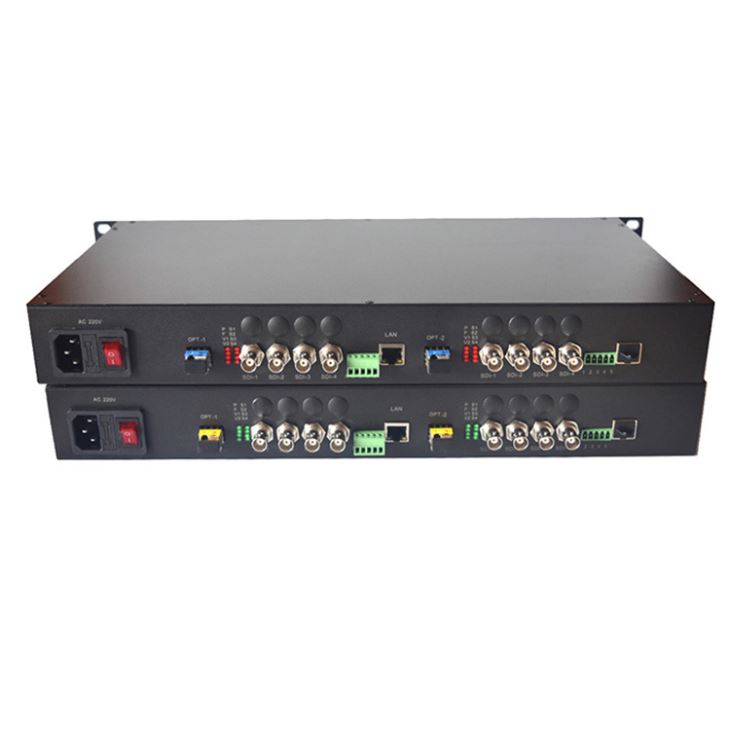

What Is 8 SDI Over Fiber Optic Extenders

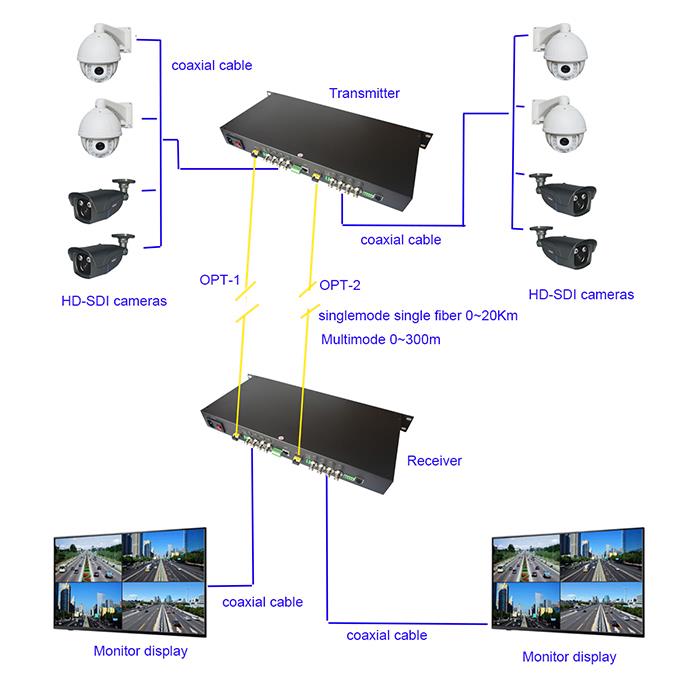

8 SDI Over Fiber Optic Extenders The item is 8 channels of HD-SDI over two single fiber optic cable with LC optical interface for remote video monitor,each optical cable transmission 4 channels HD-SDI separately. It is with one 10/100Mbps ethernet and one RS-422 data on the transmitter and receiver,HD-SDI signal with embedded audio signal. Dual LC optical interface. working distance up to 20Km by singlemode fiber .
Features:
1. The item is 8 channels of HD-SDI over two single fiber optic cable with LC optical interface for remote video monitor,each optical cable transmission 4 channels HD-SDI separately. It is with one 10/100Mbps ethernet and one RS-422 data on the transmitter and receiver,HD-SDI signal with embedded audio signal.
2. Support cameras: HD-SDI (1.485Gbps). working distance: singlemode 0-20Km,compatible with multimode 0-300m.
3. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment.Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD-SDI signal transport.
4. It is widely used in TV live broadcast, high-definition video conferencing, high-definition video surveillance and other fields.
Function:
1. 8x HD-SDI (same direction, from TX to RX).
2. 1x 10/100Mbps Ethernet.
3. RS-422 data.
4. Double Fiber interface, with SFP module single LC.
5. Working distance: singlemode 0-20Km, multimode 0-300m.

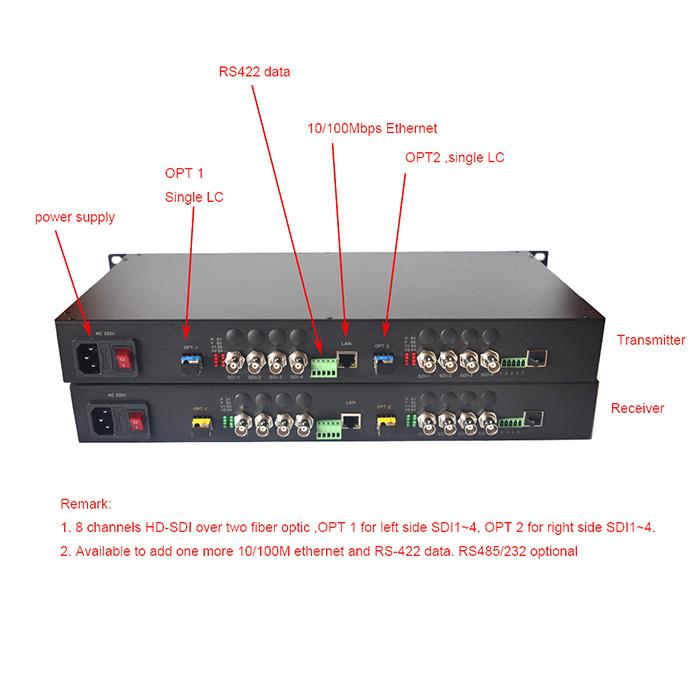

8 SDI Over Fiber Optic Extenders Ports

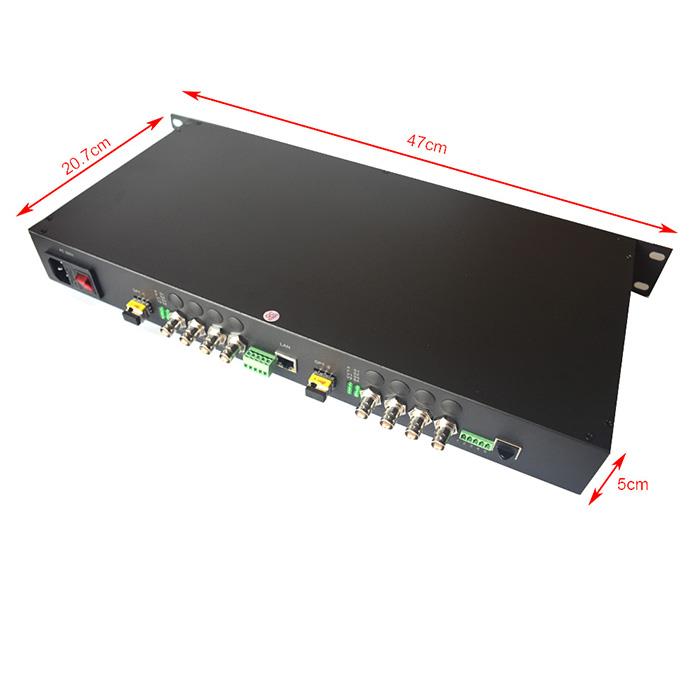

8 SDI Over Fiber Optic Extenders Size
8 SDI Over Fiber Optic Extenders SizeSpecification:
1. Support resolution :[email protected],25,24, [email protected],50,[email protected],50,30,25
2. It is widely used in TV live broadcast, high-definition video conferencing, high-definition video surveillance and other fields.
3. The broadcast signal quality, fully compliant SMPT standard;
4. Optical interface: single LC (FC/SC optional)
5. Data interface: RS-422 (RS485/232 optional)
6. Working distance: Single-mode 0-20Km, compatible with multimode 0-300m.
7. Voltage:AC100V-240V,DC5V/2A (US/EU/UK/AU available )
Package Include:
1 x HD-SDI Transmitter
1 x HD-SDI Receiver
1 x 3m LC/LC fiber optic patch cable
2 x Power adaptor
1x Manual
