What Is HD SDI Over Fiber Optic Extenders
HD-SDI Fiber Optical Media Converters Transmitter and Recevier for HD SDI CCTV, Video/Audio/Data/Ethernet over fiber optic ,Long working distance up to 20Km. 40km/60km/80km optional. 3G-SDI optional
Overview:
The item is a HD/SD-SDI over singlemode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of one HD/SD-SDI signal with embedded audio signal and has bidirectional (reverse directional optional) RS485 data channel for camera control also loop-out connectors and bidirectional 2 channels audio (4RCA connectors) ,and 10/100Mbps ehternet on the transmitter & receiver for monitoring, The system support signals accord with standards of SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability. In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured HD/SD-SDI signal transport.
Function:
1x 3G/HD-SDI and local loop out (HD-SDI and 3G-SDI two version optional)
1x 10/100Mbps Ethernet
2x RCA Audio (bidirectional), 2 in and 2 out
1x 3.5mm Audio in and out
1x RS-485 data (bidirectional)
Two versions options: HD-SDI and 3G-SDI,
● HD-SDI version: Support HD-SDI camera, Video resolution up to [email protected] and [email protected] backward compability.
● 3G-SDI version: Support 3G-SDI and HD-SDI camera, Video resolution up to [email protected] and [email protected],backward compability.

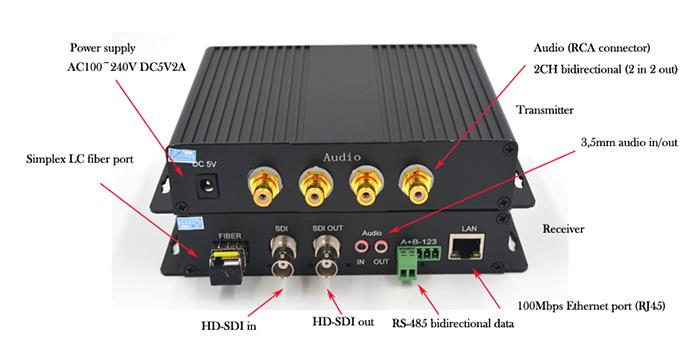

HD SDI Over Fiber Optic Extenders Ports

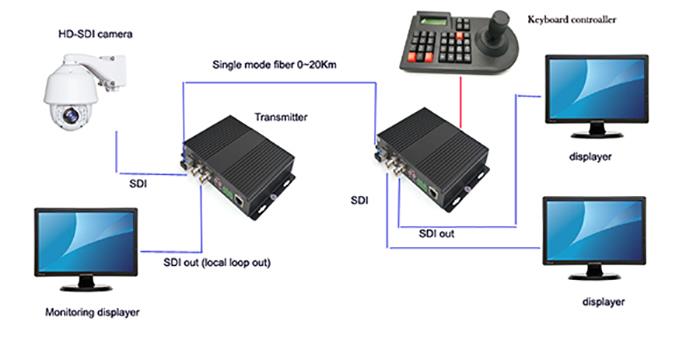

HD SDI Over Fiber Optic Extenders DiagramFeatures:
1. This 3G/HD-SDI over fiber system is used to send one channel 3G/HD-SDI signal over single Fiber optic to remote video display devices, 3G/HD-SDI with embedded audio signal.
2. Fiber interface LC. Working distance: single-mode up to 20Km,multimode up to 500m. Suitable fiber type: universal singlemode and multimode fiber.
3. HD-SDI version Support video resolution: [email protected] and [email protected] max; 3G-SDI version Support video resolution: [email protected] and [email protected] max.
4. BNC port for HD-SDI , RJ45 port for 10/100Mbps Ethernet for computer networking transmission ,as well as IP camera with RJ45 connector. Terminal block connector for RS-485 data (Bidirectional, 2 wires),RCA port for 2 channels bidirectional Audio, front two 3.5mm hole for stereo 3.5mm audio in/out.
5. Plug and play,Easy to use.
Package Include:
1 x SDI Transmitter
1 x SDI Receiver
2 x SFP module.
1 x 3m LC/LC singlemode fiber patch cord
2 x Power supply adaptor AC100-240V DC5V/2A (US/EU/UK/AU available )
1x User Manual
