What Is 3G HD SDI Optical Transceiver Media Converters
3G HD SDI Optical Transceiver Media Converters One HD-SDI Video/Audio/Ethernet/Data over Fiber Optic Media Converters Transmitter Receiver ,working with SDI Cameras.working distance 20Km (40Km/60Km/80Km optional).RS485/422/232 data optional. SFP simplex LC fiber interface(FC/ST/SC/LC optical interface optional). 3G-SDI optional. Custom made available.
Overview:
The item is one 3G/HD-SDI over single-mode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of one 3G/HD-SDI signal with embedded audio signal . The system support signals accord with standards of SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability. In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps and to 2.97Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured 3G/HD-SDI signal transport.
Optional version: HD-SDI and 3G-SDI,
1. HD-SDI version: Support HD-SDI camera, Video resolution up to [email protected] and [email protected] backward compatibility.
2. 3G-SDI version: Support 3G-SDI and HD-SDI camera, Video resolution up to [email protected] and [email protected],backward compatibility.
Features:
1. This SDI over fiber system is used to send 3G/HD-SDI Video and Audio signal over one fiber optic to remote display devices, using a single LC/LC Fiber Optic cable.
2. This unit provides one 3G/HD-SDI signal with embedded audio signal and one local loop out on the transmitter and receiver for monitoring
3. Transmission distance can be up to 20Km over single singlemode fiber optic, and up to 500meters through a multimode fiber optic.
4. Plug and play.

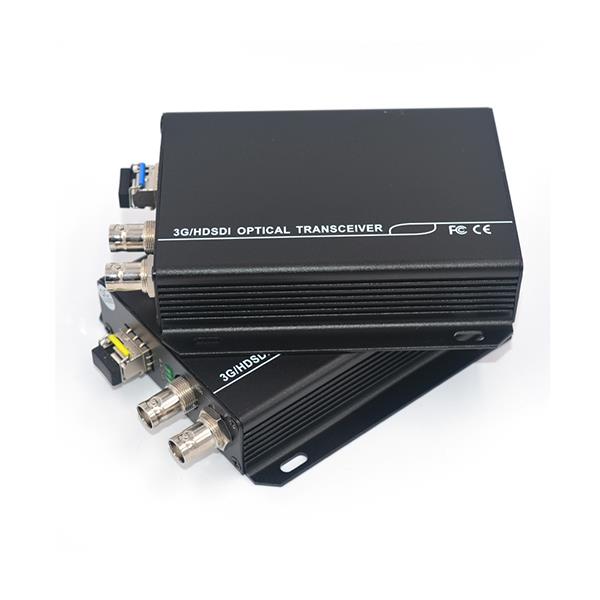

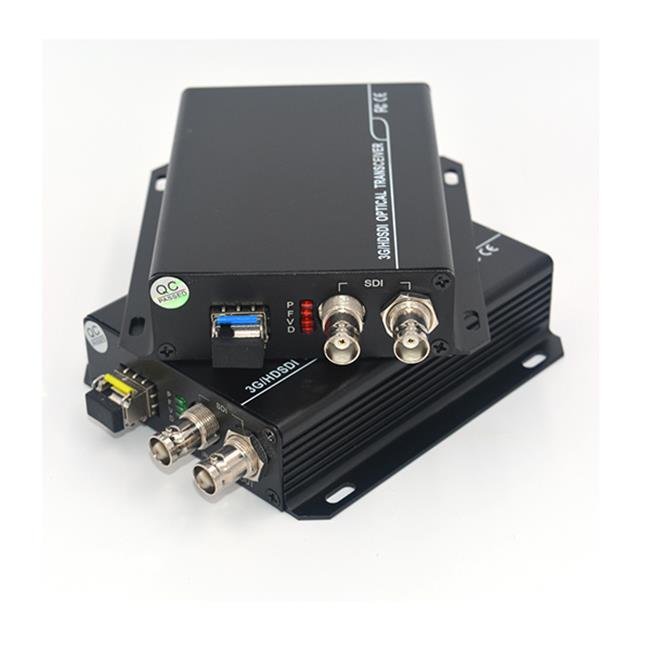

3G HD SDI Optical Transceiver Media Converters

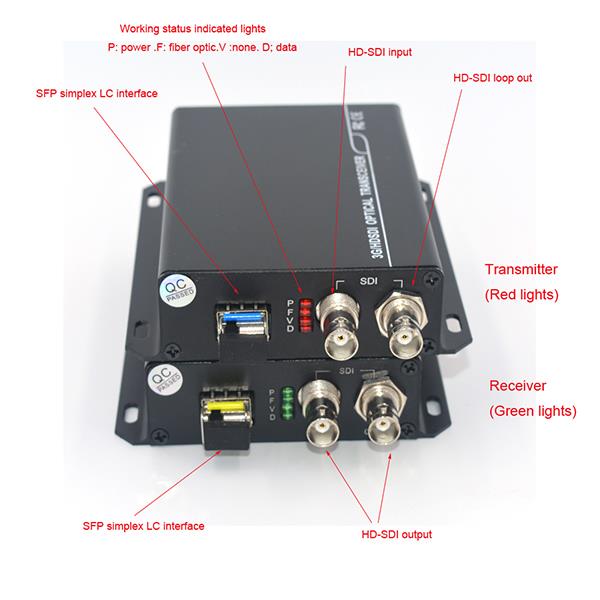

3G HD SDI Optical Transceiver Media Converters Ports

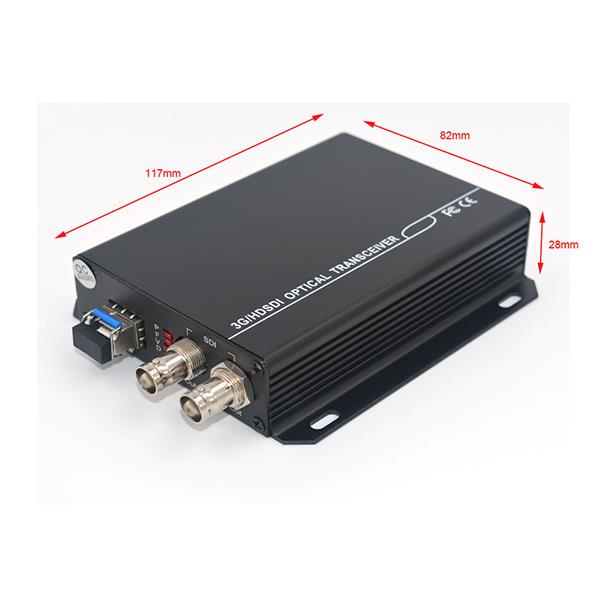

3G HD SDI Optical Transceiver Media Converters Size

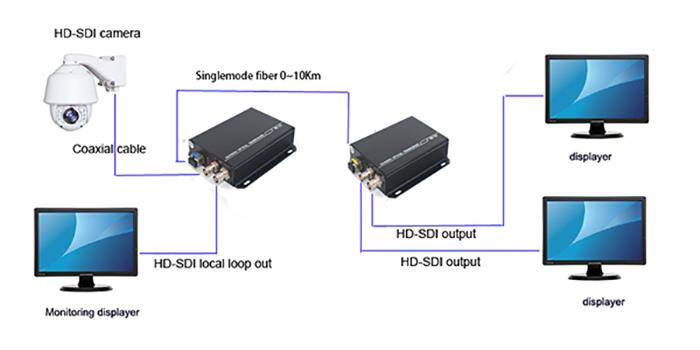

3G HD SDI Optical Transceiver Media Converters Diagram
3G HD SDI Optical Transceiver Media Converters PackDescription:
1. Fiber interface: LC
2. Suitable fiber type: singlemode fiber and multimode fiber.
3. Working distance: Single-mode 0-20Km, multimode fiber 0-500m.
4. Working voltage:AC100V-240V,DC5V/2A. Power adaptor US/EU/UK/AU plug optional.
5. Package: carton box.
Package :
1 x SDI Transmitter
1 x SDI Receiver
2 x SFP optical module
2 x Power adaptor plug
1x Manual
