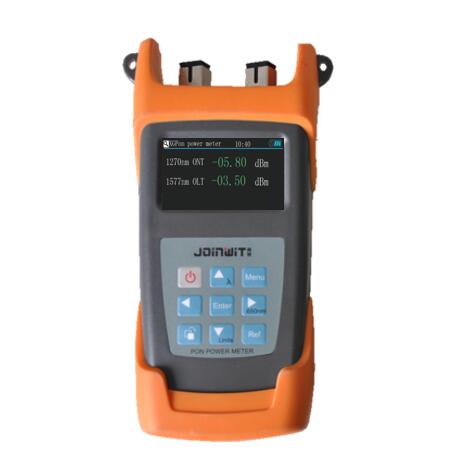

JW3239A XGPON/10GEPON Optical Power Meter

JW3239A XGPON/10GEPON Optical Power Meter


( Order Today, Ship before 09/18/2025 )
  • Description
  • Reviews
  • FAQs

What Is JW3239A XGPON/10GEPON Optical Power Meter price and specification

Product
overview


XGPON/10GEPON optical power meter is
a new test instrument for FTTX business and maintenance. It not only supports
all functions of traditional PON optical power meter, but also has the next
generation XGPON/10GEPON power measurement function, it is an ideal choice for
PON network engineering, construction and maintenance to detect whether the
optical power reaches the standard accurately by the threshold data set by the
user.


Technical specifications:


G/E PON mode


Measuring wavelength


1310nm


1490nm


1550nm


Measuring range(dBm)


+10--40


+10--40

+25--40


Spectral
passband (nm)


1310±50


1490±10


1550±30


Isolation


1490nm wave-band>40dB
1550nm wave-band>40dB


1310nm wave-band>40dB
1550nm wave-band>35dB


1310nm wave-band>40dB
1490nm wave-band>35dB


XGPON /10GEPON mode


Measuring wavelength


1270nm


1577nm


Measuring range(dBm)


+10--40


+10--40


Isolation


1577nm wave-band>40dB


1270nm wave-band>40dB


Other parameter


Penetrance IL(dB)

≤1.5dB


dB


≤0.5dB


Display resolution


0.01dB


Threshold settings


10 group


Data storage


1000 group


Working temperature


-10℃-+60℃


Relative humidity


0%-95%RH


Fiber optic interface
type
