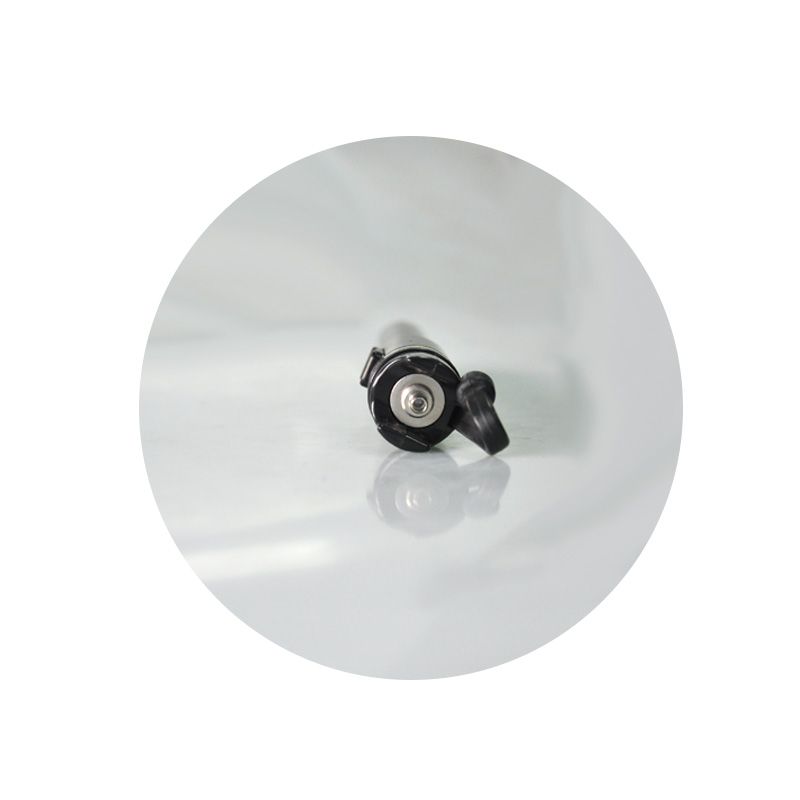

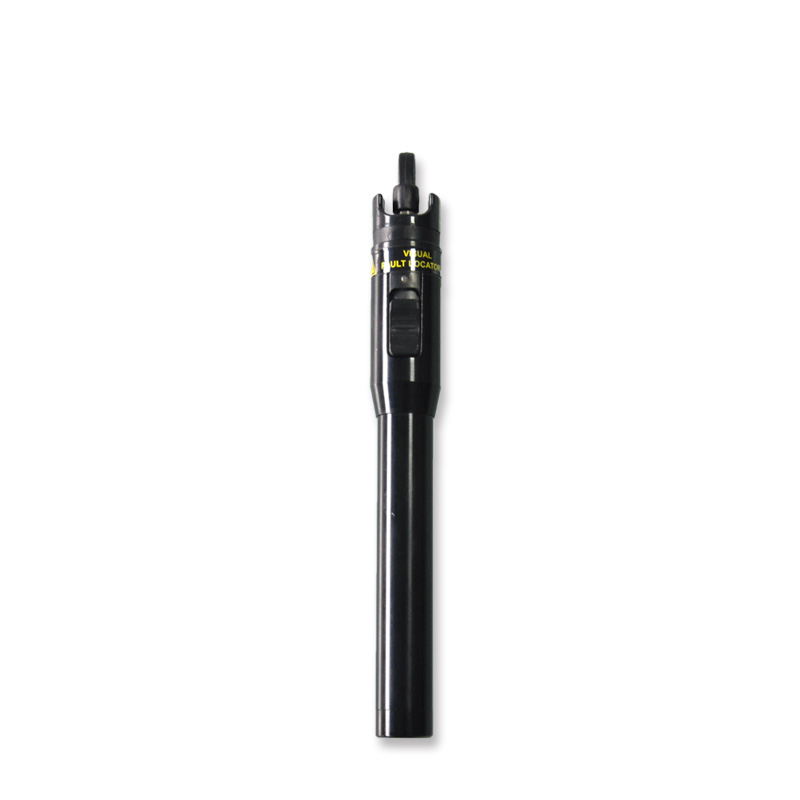

What Is JW3105A Pen-type Visual Fault Locator (VFL) price and specification
Features
- 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC (Female)
- Convertor can be provided on requests.
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life (up to 60 hours)
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Burning testing to ensure the reliability.
- Portable and rugged, easy to use
Specifications
JW3105A | |
Central Wavelength | 650nm±10nm (635nm can be required on request) |
Emitter Type | FP-LD |
Output Power | Optional choice for 1mw, 10mw on actual needs |
Optical Connector | 2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) can be optional on customer requests |
Operating Model | Both CW and Pulse available |
Pulse Frequency | 2-3Hz |
Power Supply | 2 AA |
Battery Operating Time | [email protected] ≥65hour [email protected]≥15hour Test with Panasonic LR6 AA ALKALINE battery |
Operating Temperature | -10-+45 (℃) |
Storage Temperature | -40-+70 (℃) |
Dimension | 24.5*5.5*5.5cm |
Weight | 0.2kg |
