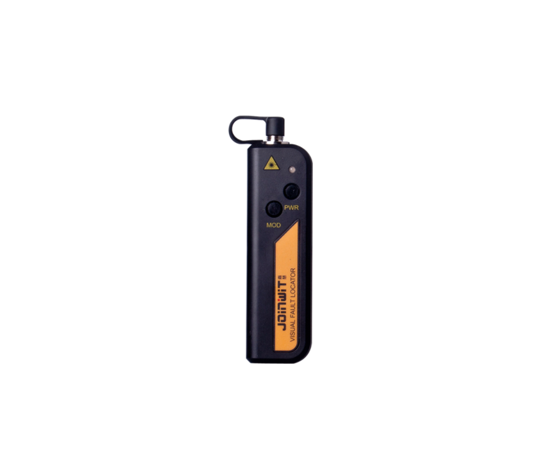

What Is JW3105N Handheld Visual Fault Locator(VFL) price and specification
Features
- Constant & stable output power
- Special laser driver circuit design, to make sure the laser output power remains a constant power level as long as in an available battery voltage.
- Low battery warning, reminds users to change the battery timely.
- Long battery life(up to 40 hours with AAA batteries)
- Operates either in CW or Pulsed
- Pocket size and light weight, easy to use
Specifications
JW3105N Economical VFL | |
Central Wavelength | 650nm±10nm |
Emitter Type | FP-LD |
Output Power | 1mw or 10mw |
Optical Connector | FC/2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) can be optional on customer requests |
Operating Model | Both CW and Pulse(2Hz) available |
Power Supply | Two AAA alkaline batteries |
Battery Operating Time | 40hours Test with Panasonic LR6 AAA ALKALINE battery |
Operating Temperature | -10-+60 (℃) |
Storage Temperature | -25-+70 (℃) |
Dimension | 13*5*3.5cm |
Weight | 0.1kg |
