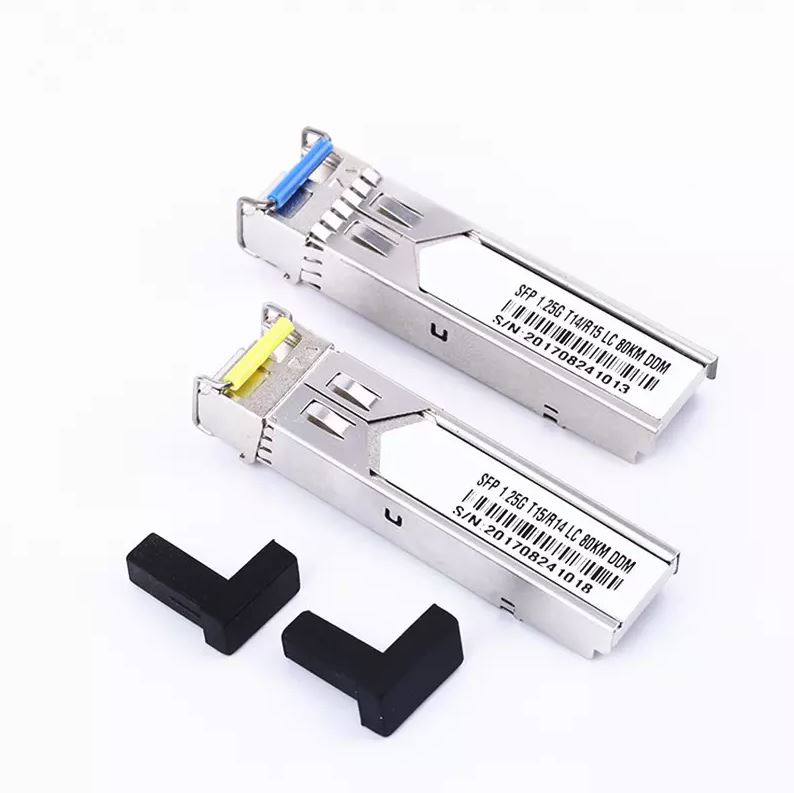

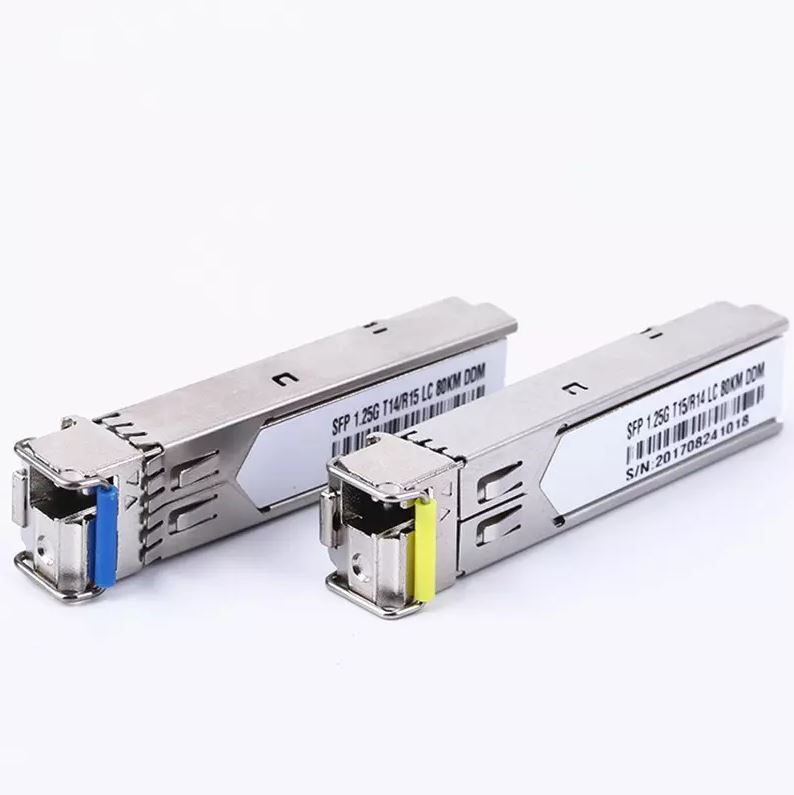

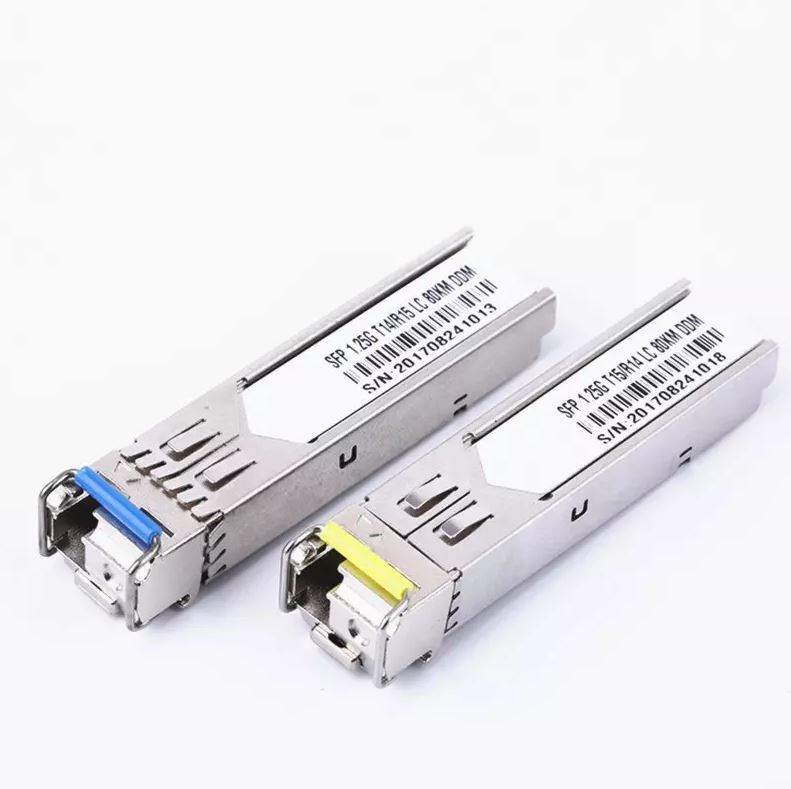

What Is SFP 1.25G BIDI 60KM Optical Transceiver Module SFP 1.25G T14 LC 80Km DOM SFP 1.25G T15 LC 80Km DOM
SFP 1.25G BIDI 60KM Optical Transceiver Module SFP 1.25G T14 LC 80Km DOM SFP 1.25G T15 LC 80Km DOM The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 20km transmission distance on 9/125um SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and DDMI control unit. All modules satisfy class I laser safety requirements.
Features：
1.Up to 20 km transmission on SMF
2.Up to1.25 Gbps
3.1310nm FP laser and PIN receiver
4.Single LC receptacle optical interface compliant
5.2-wire interface for integrated Digital Diagnostic monitoring
6.Hot pluggable
7.Very low EMI and excellent ESD protection
| Data Rate | 1.25G | Fiber Mode | Single Mode Fiber (SMF) |
| Types of Interface | LC | Types of Laser | DFB/FP |
| Operating Temperature | Standard 0-70°C | Operating Humidity | 0%-90% RH (non condensing) |
| Transmission distance | 3/20/30/40/60/80km | Modes of Communications | Simplex |
| Wavelength | 1490nm TX/1550 nm RX | Types of Multiplexing | BIDI WDM |
| Receiver Sensitivity | <-23dBm | Extinction Ratio | >9dB |
| Form Factor | SFP BIDI | Power Consumption | <3W |
| Hot Pluggable Times | 200 | Average Output Power | -5 - -0dBm |
