What is SFP-GE-LH80-SM1550 1.25G-1310nm-80Km-Optical Transceiver Module
SFP-GE-LH80-SM1550 1.25G-1310nm-80Km-Optical Transceiver Module The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 20km transmission distance on 9/125um SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and DDMI control unit. All modules satisfy class I laser safety requirements.
Features：
1.Up to 20 km transmission on SMF
2.Up to1.25 Gbps
3.1310nm FP laser and PIN receiver
4.Single LC receptacle optical interface compliant
5.2-wire interface for integrated Digital Diagnostic monitoring
6.Hot pluggable
7.Very low EMI and excellent ESD protection
| Data Rate | 1.25G | Fiber Mode | Single Mode Fiber (SMF) |
| Types of Interface | LC | Types of Laser | DFB/FP |
| Operating Temperature | Standard 0-70°C | Operating Humidity | 0%-90% RH (non condensing) |
| Transmission distance | 3/20/30/40/60/80km | Modes of Communications | Simplex |
| Wavelength | 1310nm TX/1550 nm RX | Types of Multiplexing | BIDI WDM |
| Receiver Sensitivity | <-23dBm | Extinction Ratio | >9dB |
| Form Factor | SFP BIDI | Power Consumption | <3W |
| Hot Pluggable Times | 200 | Average Output Power | -5 - -0dBm |

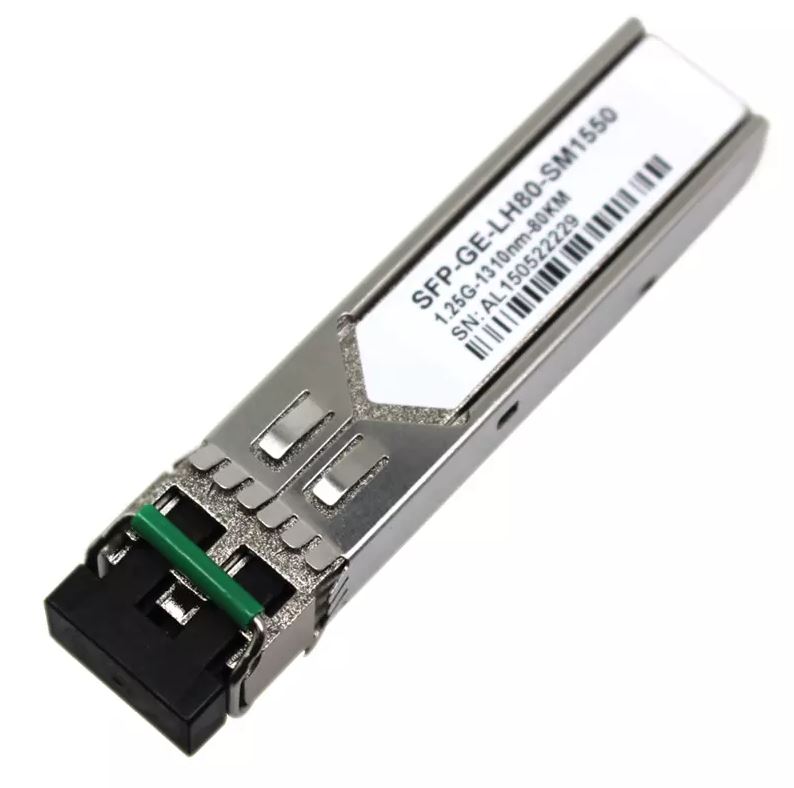

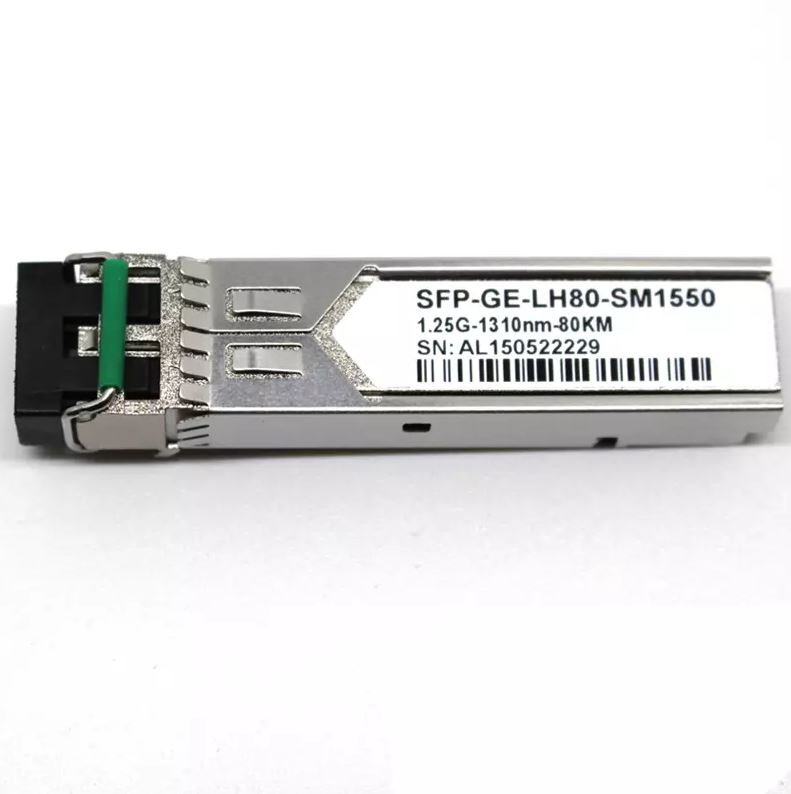

SFP-GE-LH80-SM1550 1.25G-1310nm-80Km-Optical Transceiver Module
