Basic Information
Wall Mounted Fiber Optic Terminal Box 4 Fiber Ports SC LC is designed in a simply but effective way for low density fiber cablings. It is a cover and base box. You can open it easily by pull the plastic lock. You can disploy 4 cores SC or 8 cores LC connections as per the FTTX application.
Specification
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Weight | 1100g |
| Available Cable | Outdoor or Indoor Drop Cable |
| Outlet | 4 Port |
| Installation way | Wall Mount |
| Dimensions | 140mmx130mmx36mm |
| Applications | Wall Mount Distribution Use |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 4 pcs SC or 8 pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Wall Mount Usually |
| Location of Use | FTTH FTTB |
| Lock Compatible | Button |
| Number of Terminal Drops | 1 or 2 Cables |
| Number of Trays | 1 pcs 4 fiber Splice Tray |
| Product Type | Wall Mount Termination Box |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 4 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |
Image Details

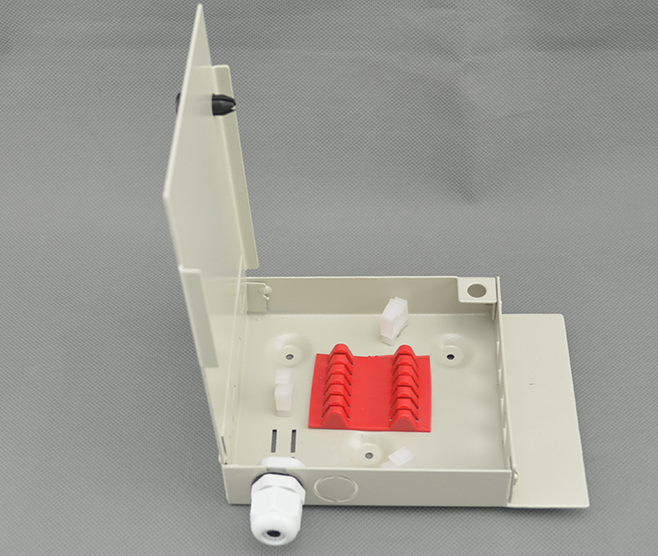

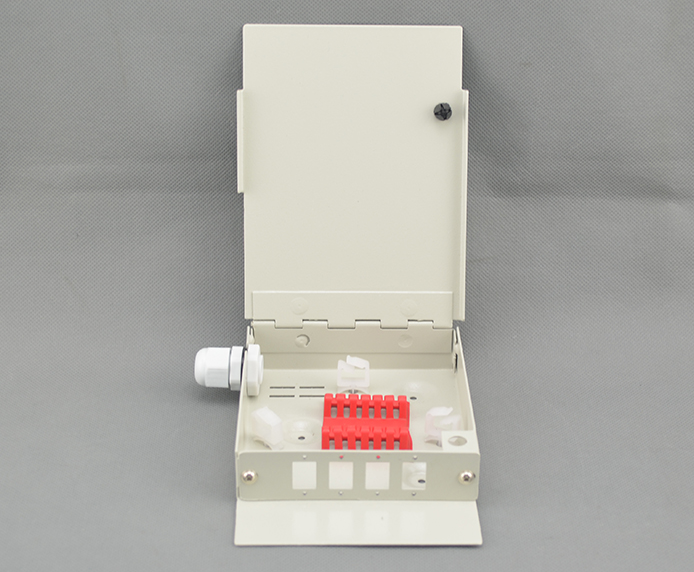

4 Fiber Ports SC LC Wall Mountable Fiber Optic Terminal Box Cable Fibre Termination Enclosure inside

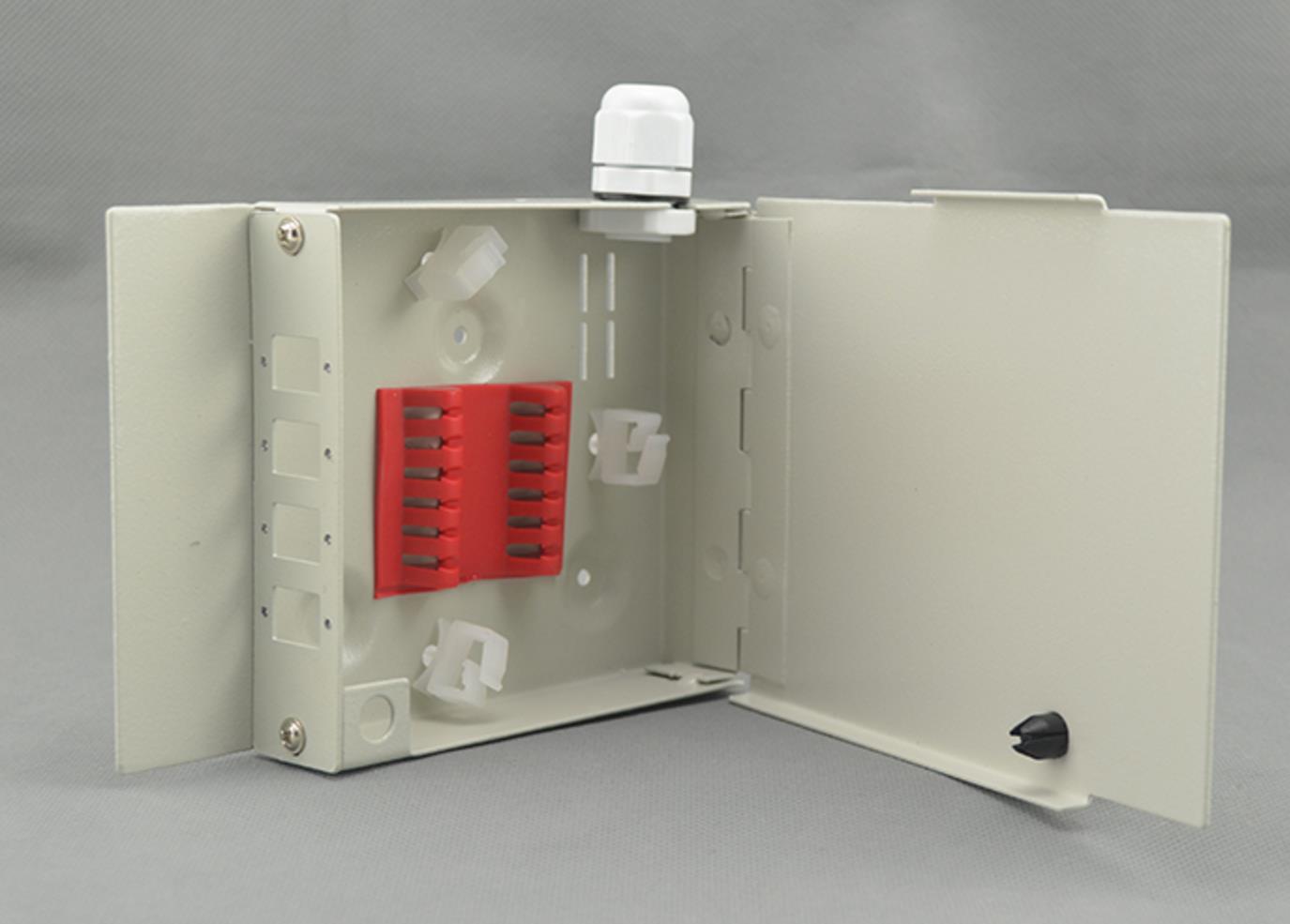

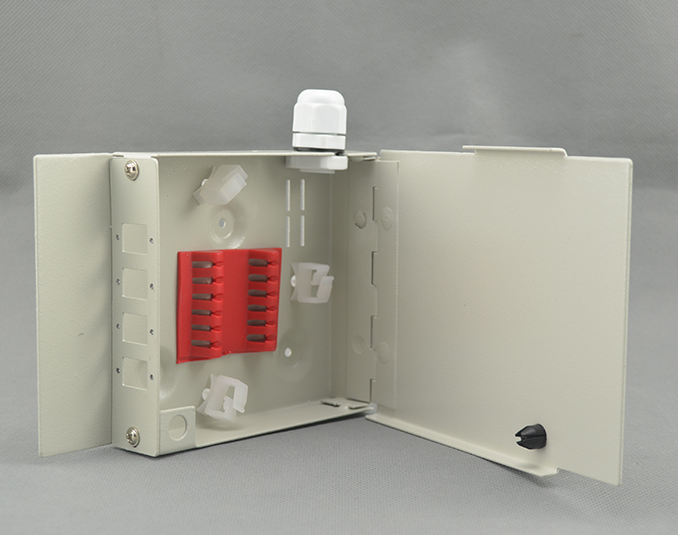

4 Fiber Ports SC LC Wall Mountable Fiber Optic Terminal Box Cable Fibre Termination Enclosure Splice Tray
4 Fiber Ports SC LC Wall Mountable Fiber Optic Terminal Box Cable Fibre Termination Enclosure Cable Wire Ring

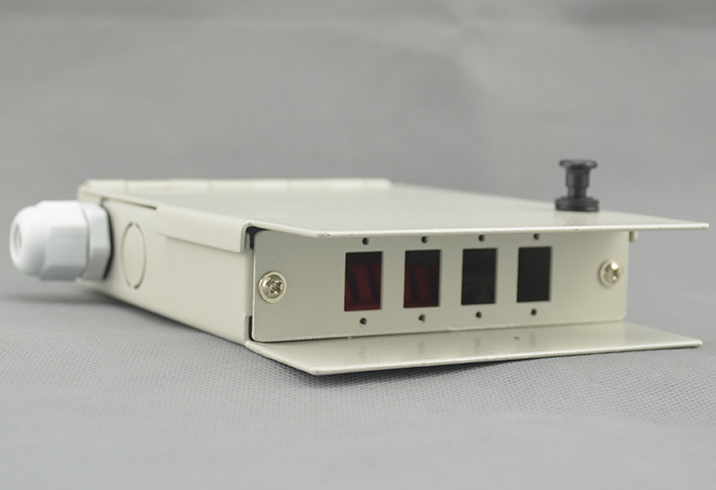

4 Fiber Ports SC LC Wall Mountable Fiber Optic Terminal Box Cable Fiber Port
4 Fiber Ports SC LC Wall Mountable Fibre Termination Enclosure Sideview

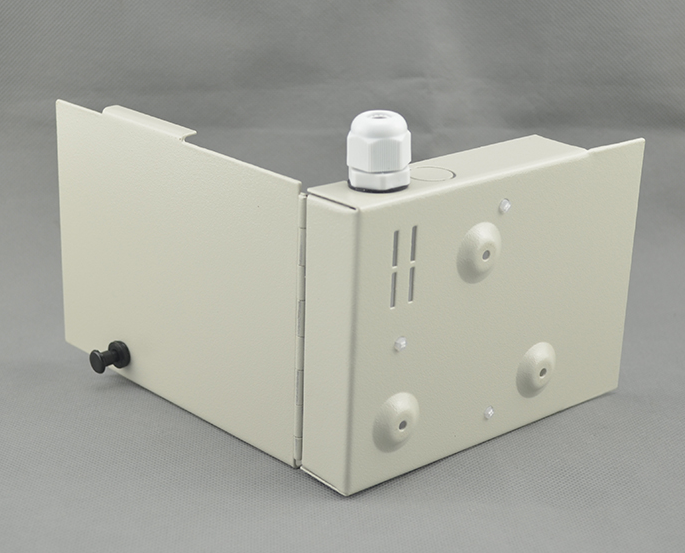

4 Fiber Port SC LC Wall Mountable Fibre Termination Enclosure Back side
FAQs
What items are included in this 4 Fiber Ports SC LC Wall Mountable Fiber Optic Terminal Box Cable Fibre Termination Enclosure
A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
Can it access two pcs fiber optic cable
Yes, You can open the surplus port for another fiber cable
What fiber optic adapter can be installed inside this fiber optic face plate
usually it is used with SC/UPC or SC/APC fiber adapter
