Basic Information

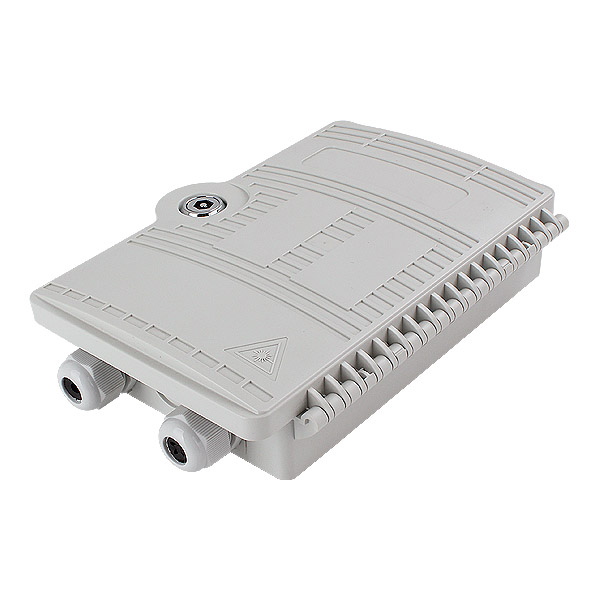

This 2 port Outdoor Wall Mounted Optical Fiber Distribution Box FTTH Termination Box is used for splicing and termination between indoor SC LC fiber optic cable and pigtails. used for wall mounted to connect indoor cable with drop cables. It is usually connected with 2 SC/APC or SC/PC drop fiber optic cables.
Specification
| Suitable Adapters | SC LC |
| Material | With fire-proof ABS plastic |
| Weight | 480g |
| Available Cable | 3.1mm*2.0mm rubber fiber cable |
| Outlet | 2 Port |
| Installation way | Wall Mount |
| Dimensions | 200mm*110mm*35mm |
| Applications | Wall Mount Distribution Use |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 1 pcs SC or 2 pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Indoor Cable |
| Location | Wall Mount Usually |
| Location of Use | FTTH FTTB |
| Lock Compatible | Button |
| Number of Terminal Drops | 1 or 2 Cables |
| Number of Trays | No |
| Product Type | Wall Mount Termination Box |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 1 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 100pcs |
Image Details

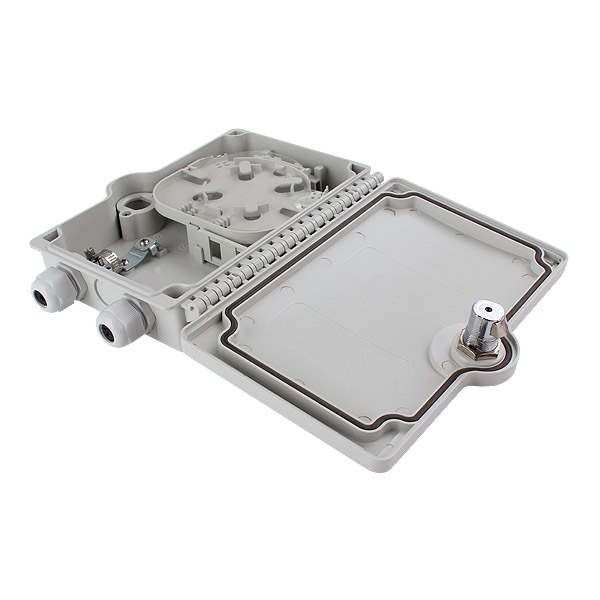

2 port Outdoor / Indoor SC Wall Mounted FTTH Optical Fiber Distribution Box Termination Enclosure inside
FAQs
What items are included in this 2 port Outdoor / Indoor SC Wall Mounted FTTH Optical Fiber Distribution Box Termination Enclosure
A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
