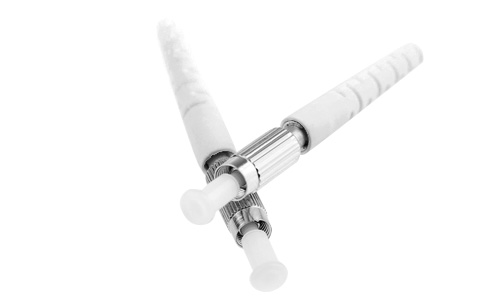

This unique DIN fiber optic connector gives high performance in a small, DIN 47256 compatible design suitable for a wide range of applications. The DIN connectors are made of precision screw machined nickel plated brass for consistent performance and durability.
DIN Optical fiber connectorFeatures of DIN connector
Connector compatible with DIN 47256
Low insertion loss and high return loss
Boot of Telcordia type – side-pulling proof
High quality ceramic ferrule
LSA(PC) and LSA-HRL(8° APC) available
Compact size
DIN connecotor availability
The DIN connector is available with a variety of boots. The DIN fiber connector comply with CECC 86 135-801 (PC version) & CECC 86 135-802 (APC version) standards.
We supply single mode DIN connector and multimode DIN connector.
Application of DIN connector
These DIN fiber connectors are widely used in telecommunications, CATV, LAN, MAN, WAN, test & measurement, industry, medical and sensors.
DIN connector speicifcation
| Connector Type | Insertion Loss | Return Loss | Repeatability | Exchangeability |
| (500 matings) | ||||
| DIN LSA Single mode | < 0.3dB | 50 dB | < 0.2dB△ | < 0.2dB△ |
| DIN LSA-HRL Single mode | < 0.3dB | 65dB (8° APC) | ||
| DIN LSA Multimode | < 0.3dB | – | < 0.2dB△ | < 0.2dB△ |
DIN connector drawings

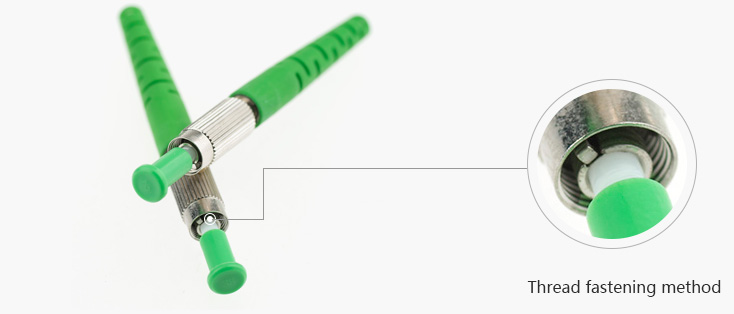

Easy installation
The DIN connector adopts standard anti-rust and wear-resistant round metal body, and the screw fastening method is firm and easy to disassemble.
DIN connector adopts standard anti-rust and wear-resistantSmall size, high density

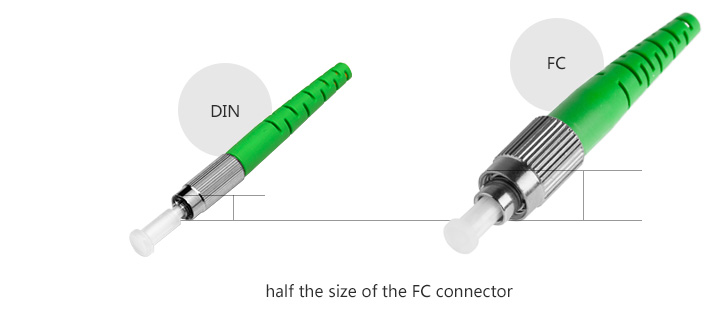

The DIN connector is half the size of the FC or ST connector and doubles the port density compared to conventional fiber optic connectors.
DIN connector is half the size of the FC or ST connectorHigh quality ferrules

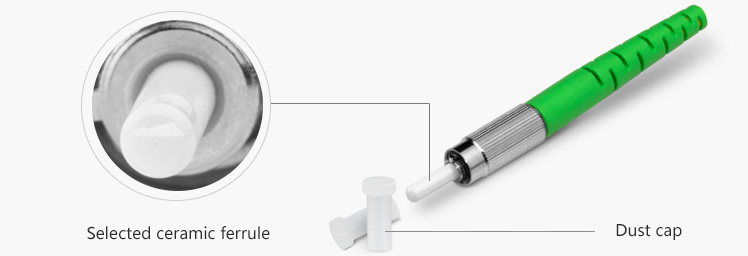

Selected ceramic ferrule, professional grinding technology, precise docking of fiber end face; lower insertion loss ≤0.15dB, making transmission more stable and connection more efficient.
DIN Optical fiber connector ceramic ferrule Dust CapStable parameter performance

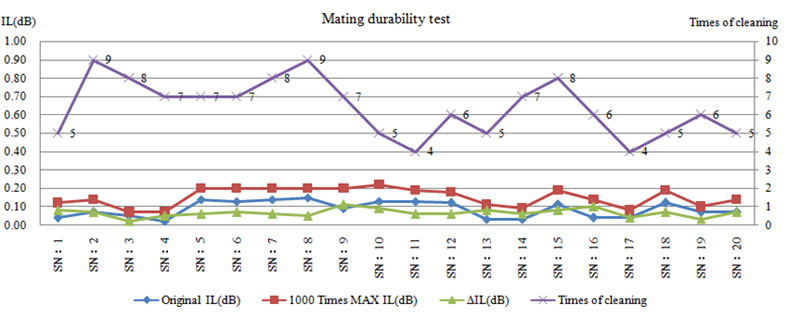

The DIN connector meets the working environment of -40-85 °C, with an average of more than 500-1000 insertion and removal tests, with stable performance and reliable quality.
DIN Optical fiber connector Test ResultOperating temperature：-40-85℃
Insert-pull test：500-1000 times
Multiple styles available.
DIN Optical fiber connector are available in a variety of colors and boots.
DIN Optical fiber connector SM 3.0mm APC
DIN Optical fiber connector SM 2.0mm APC
DIN Fiber Optic Connector MM 3.0mm PC
DIN Optical fiber connector SM 3.0mm PC
DIN Optical fiber connector SM 0.9mm PCCompliance with international standards
The DIN Optical fiber connector can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754-3, IEC 61753-1 and other standards.
DIN Optical fiber connector StandardsWIKI
