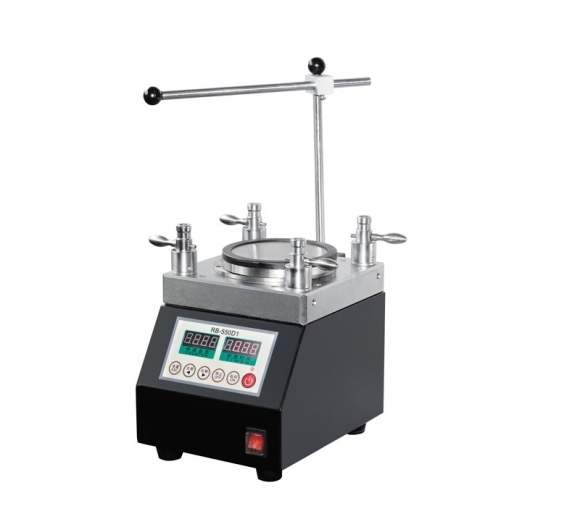

Fiber Optic Connector Polishing Machine 24-550D Grinding Machine high-performance polish machine offers superior quality and maximum through put at a very affordable price. high speed rotation & revolution method,Standard capacity 18 connectors, up to 48 LC/MU. · This Square Pressure Fiber Optic Polishing Machine strength controlled by four angle, thus the pressure is more precise to control and the final products has higher precision. · For PC terminations above 95% could pass 3D interferometer test, while for APC terminations this rate keep 90%. · Each polishing jig for this machine is available as LC,SC,ST, FC, MTRJ,E2000 PC connector as well as angle polishing. · May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, ,MU/UPC/APC, MTRJ,E2000/UPC/APC etc.

1. Polishing procedure adopt mechanic integrated circuit module and touch buttons. It makes the methodology quality be more controllable.
2. Polishing fixture adopt four coil pressure type. The pressure is controlled by the four coils.
3. It makes the product precision better and more consistent in quality.It can produce the geometric surface meet the IEC standard requirements.
4. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable with normally 110RPM.
5. Use new I.P.C polishing fixture (every ceramic ferrule can be loaded independently) technology ensure the high qualified rate of production. The polishing results are the same no matter polish one or 40pcs polishing connectors.
6. Maximum polishing capacity reaches 40pcs for MU and LC connectors. And for SC, FC, ST. it reaches 32pcs.
7. The high quality stainless steel material after heat-treatment ensures the high precision & durability of the machine.

Fiber polish Machine 24-550D Main feature in fiber optic patch cord and pigtail production line

• Purified water and polish fluid can be used to save cost for consumable material.

• Fixed torque of adjustable motor will not be changed by varied speed, it will also

• reduce polish variance.

• Unique design for electrical, air and water were separated inside of cabinet,

• to secure safety during operation.

• Module type of electrical control is easy for maintenance.

• Based on the polishing process, moving the weight to proper loading position.

• Anti-vibration pad is adjustable to certain height.

Specification:

• Machine size 220W x 420L x 500H mm
• Net weight 26 KG
• Power AC 110/220V , 50/60 Hz , 85W
• Consumption air 3 kgf/cm2
• Polish disc O.D. 112 mm
• Polish speed 30–300 RPM
• Time setting 999.9 Sec. (Max.)

Fiber optic Connector polish Machine Central pressure Type 12-D
