Automatic Fiber Optic Connector Ferrule Glue Injection Machine

Automatic Fiber Optic Connector Ferrule Glue Injection Machine Automatic dispensing

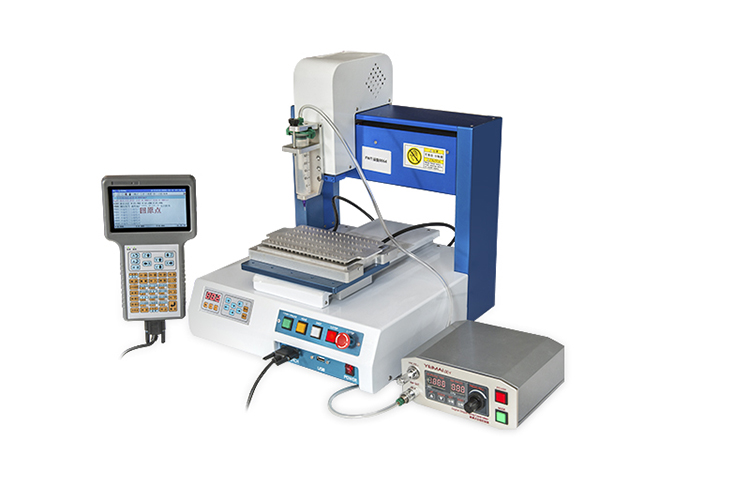

Automatic Fiber Optic Connector Ferrule Glue Injection Machine or Automatic dispensing use to fill the ferrule of connector with Glue when you have large order . Inject some Epoxy Glue on the surface of the fiber and then inserting the fiber into the ferrule of connector Automatic dispensing, only need to replace the dispensing board, set up the procedures basically do not need to use people to see, just need to replace the glue and dispensing board, 8 hours can point more than 20,000 core

Description

• Stable performance and reliable quality.
• Simple and convenient operation, high speed and precise.
• Chinese / English optional operation interface.
• Single machine can be operated and installed the easiest: F series three-axis automatic dispensing manipulator can be operated in a single machine without the need of an external computer.
• Humanized teaching box program setting: Graphical touch screen design, users can easily set the dispensing path between the fingers, and easily complete the matrix copy, offset modification, correction point setting of various paths … It has super functions such as program transmission between each machine.
• Professional interpolation control system: The carefully developed control card makes the F series three-axis dispensing robot become a truly intelligent CNC three-axis dispensing equipment, suitable for SC FC LC ST E2000 MU dispensing path. (Non-standard fixtures are sold separately)
• Suitable for automatic dispensing of ceramic ferrules.
• The needle control button on the machine is more convenient than the debugging of similar products.

Parameter

• Dispensing range X / Y / Z (mm): 200/200/50
• Maximum load Y-AXIS / Z-AXIS: 8kg / 3kg
• Movement speed X & Y / Z (mm / sec): 0.1 - 800/350
• Resolution: 0.01 mm / Axis
• Repeatability: +/- 0.02 mm / 200
• Program recording mode: 100 groups, 4000 points per group (can support U disk COPY)
• Display mode: touch screen
• Motor system: Japanese micro stepping precision motor
• Operation mode: point to point / continuous line
• Transmission mode: timing belt + precision linear guide
• Motion tween function: 3 axis (any route in 3D space is available)
• Edit mode: touch screen
• I / 0 signal I / O: 8 Inputs / 8 Outputs
• External control interface: RS232
• Input power: AC110 / 220V (internal switch conversion) 300W
• Working environment temperature: 5 - 40 ℃
• Working environment humidity: 20 - 90%
• Dimensions (WxDxH mm): 413 x 439 x 534
• Body weight (kg): 28
