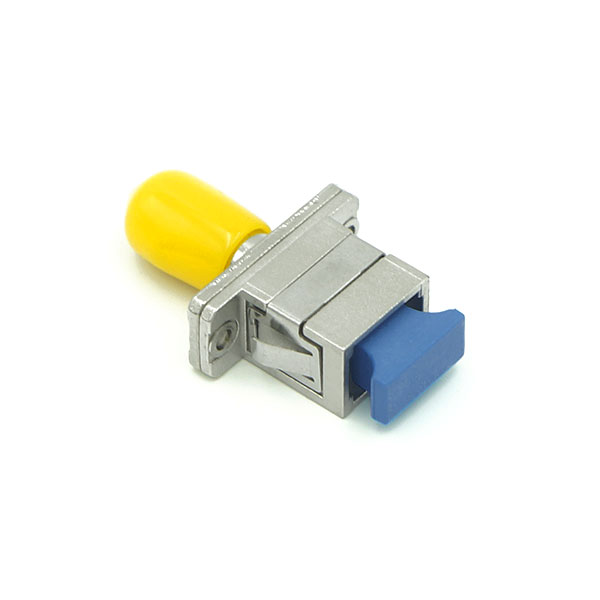

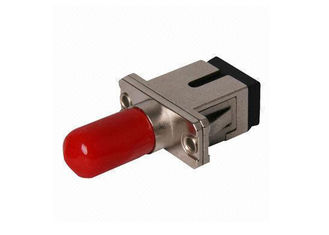

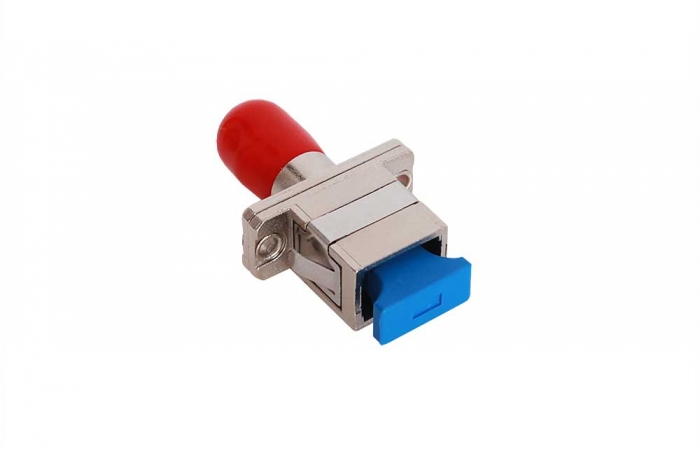

SC to ST Adapter Female to Female Simplex Metal Fiber Optic Hybrid Adapter

SC to ST Adapter Female to Female Simplex Metal Fiber Optic Hybrid Adapter

SC to ST Adapter are designed for mounting in standard rectangular cut out style panels. This series features either bronze or ceramic alignment sleeves to meet your specific design requirements. Additionally, these adapters can be used with PC or UPC style fiber connectors.

Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

The ST-SC Hybrid Fiber Optic Adapter is a special style of fiber optic adapter that supports precision connection of different types of fiber optic connectors. It is specially designed to incorporate the Small Form Factor ST into SC configured environment. The compact design enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.

• Low insertion Loss & High return loss SC to ST Metal Adapter
• Over 1000 times repeatability
• 3 year warranty and 60 days Money back
• Net 30 days payment term can be applied

High-precision Ceramic Sleeve Top level ceramic sleeve ensure stable optical performance.

Excellent Optical Performance Ultra Low Insertion Loss : 0.5db-0.2dB Excellent Repeatability and durability Good Temperature stability

SC to ST Metal Adapter Fiber Optic Adapter Applications A fiber optic adapter a designed to connect two ends of a fiber optic cable with high precision,it is Widely applied in cable television network, LAN & WAN, fiber optic access network and video transmission.

Features

• Metal body ensures durability and long life.
• Order online today!
• Used to connect duplex ST to duplex SC fiber cables.
• Bronze alignment sleeve supports Multimode applications.
• Dust caps protect against debris and contamination.

Application

• LAN
• Security
• FTTX
• High EMI/RFI environments

Product Specification SC to ST Adapter

Fiber Optic Adapters / Couplers.

Fiber optic adapter (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).

Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).

When connecting two multimode fibers, you should always make sure they are the same core diameter (50/125 or 62.5/125). A mismatch here will cause attenuation in one direction (where the larger fiber is transmitting light into the smaller fiber).

Fiber optic adapters are typically connecting cables with similiar connectors (SC to SC, LC to LC, etc.). Some adapters, called “hybrid”, accept different types of connectors (ST to SC, LC to SC, etc.). When the connectors have differing ferrule sizes (1.25mm to 2.5mm), as found in LC to SC adapters, the adapters are significantly more expensive because of a more complicated design/manufacturing process.

Most adapters are female on both ends, to connect two cables. Some are male-female, which typically plug into a port on a piece of equipment. This then allows the port to accept a different connector than for which it was originally designed. We discourage this use because we find the adapter extending from the equipment is subject to being bumped and breaking. Also, if not properly routed, the weight of the cable and connector hanging from the adapter may cause some misalignment and a degraded signal.
