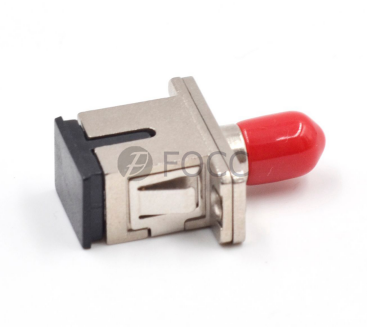

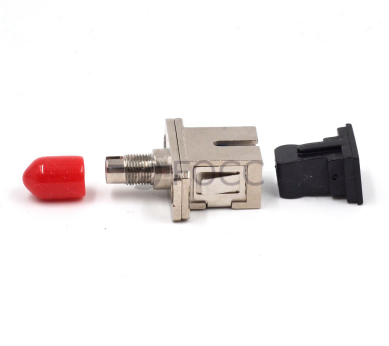

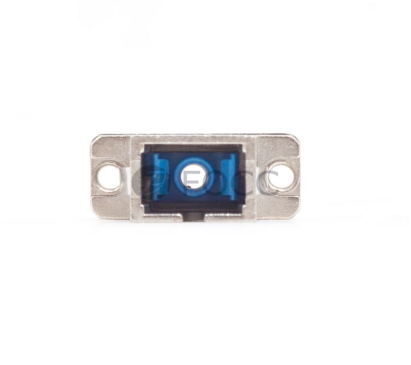

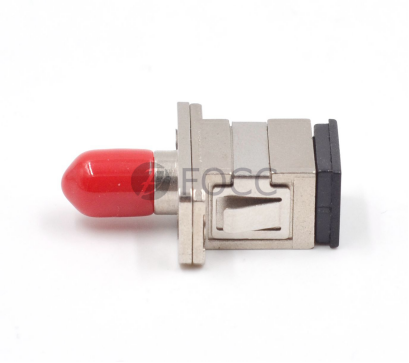

SC TO DIN Hybrid Fiber Optic Adapter

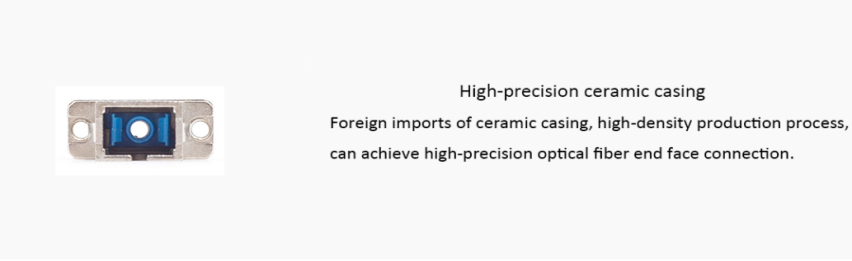

The SC-DIN hybrid fiber optic adapter is a special style of fiber optic adapter that supports precision connection of different types of fiber optic connectors. The precise ceramic sleeve inside of the optic adapter achieves prefect alignment between the ferrules of these two different connectors, thus decreasing loss during signal transmission.
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
SC TO DIN Hybrid Simplex Fiber Optic Adapter
The SC-DIN hybrid fiber optic adapter is a special style of fiber optic adapter that supports precision connection of different types of fiber optic connectors. The precise ceramic sleeve inside of the optic adapter achieves prefect alignment between the ferrules of these two different connectors, thus decreasing loss during signal transmission.
Features & Applications
v Fiber Optic Telecommunications
v Low insertion loss, high return loss
v Good compatibility
v High precision of mechanical dimensions
v High reliability & stability
v Ceramic or Bronze Sleeve
v Connection between devices
v Connection between fiber optic patch cords
v CATV, MANs, WANs
Technical specification
| Connector Type | SC-DIN | Polish Type | Plastics and metal |
| Fiber Counts | Simplex | Fiber Mode | Singlemode/Multimode |
| Insertion Loss | ≤0.2dB | Durability | ≤0.1dB |
| Flammability Rate | UL94-V0 | Working Temperature | -25-70°C |
Product Highlights
v Low insertion loss and excellent durability
v Good repeatability and variability
v Excellent temperature stability
Fiber optic adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.people sometimes also name them to be mating sleeves and hybrid adaptors ,mating sleeves means this fibre optic adapter is used to connect the same type fiber optic connectors ,while hybrid adaptors are the fiber optic adaptor types used to connect different kinds of fiber optic connectors. fiber optic adapters have a name for its stability ,they provide reliable solution for fiber connections ,single mode fibre optic adaptors and multimode fiber optic adaptors available on request. adopt high quality raw materials and make these fiber optic adapters strictly according to international standard, this makes our fiber optic adaptors fully compartible with the products from other manufacturers’ in the market.
Adapters close the gap between optical fiber connectors

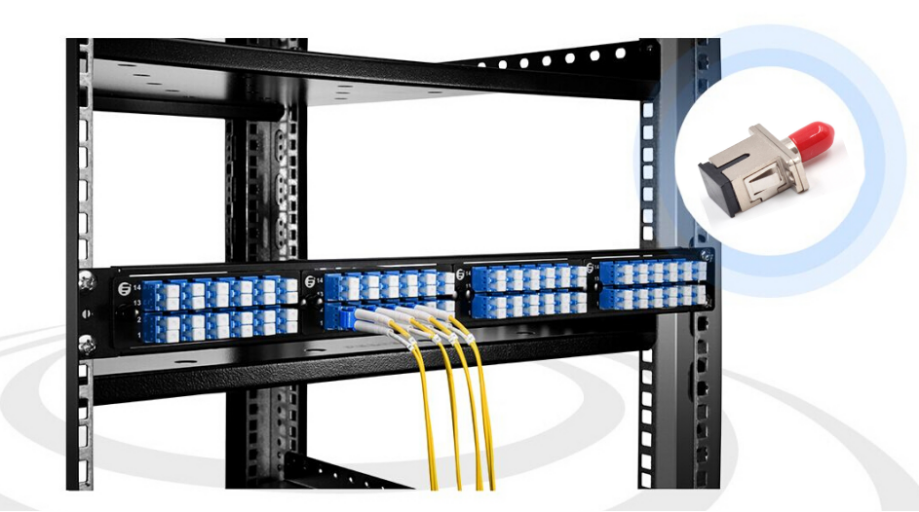

This range of fiber optic assemblies is widely used on base stations of communication systems, optical distribution frames(ODF) in computer rooms, communication devices and kinds of test instruments.
DIN Fiber Optic Connector
wiki
