ST Fiber Optic Connector

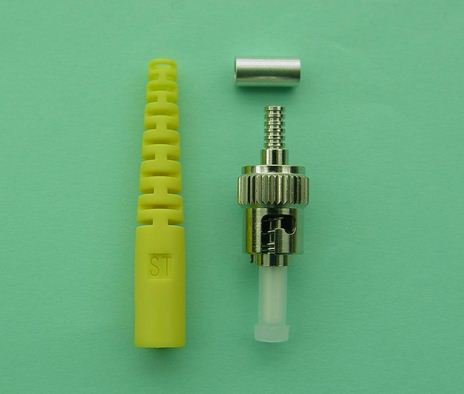

Description of ST Fiber Optic Connector

ST Fiber Optic Connector stands for Straight Tip – a quick Release bayonet style Connector developed by AT&T. STs were predominant in the late 80s and early 90s.

ST Connectors are among the most commonly used Fiber optic connectors in networking applications. They are cylindrical with twist lock coupling, 2.5mm keyed ferrule. ST Connectors are used both short distance applications and long line systems. The ST connector has a bayonet mount and a long cylindrical Ferrule to hold the fiber. Because they are spring-loaded, you have to make sure they are seated properly. They are easily inserted and removed due to their design. IF you experience high Light loss, try reconnecting.

ST connectors come in two versions: ST and ST-II. These are keyed and spring-loaded. They are push-in and twist types. They are rated for 500 mating cycles. The typical Insertion Loss for matched ST connectors is 0.25 dB.

The ST connector (straight tip) is the standard connector type for installations. It is frequently used in local networks. A typical feature of the ST connector is the bayonet connection, also known as the BFOC connector (bayonet FO connector). The standard ST FO connector for telecommunications (USA), LAN, industry, medical and sensor technology. The ST FO connectors meet the standards: IEC 61754-2 and CECC 86 115-801. The ST Standard mating adapters (metal) can be used for all ST FO connectors (not just Diamond products).

ST fiber connector is with twist-lock bayonet coupling, its 2.5mm keyed ferrule meet the durability and repeatability requirement for the fiber optic links. Typical ST fiber optic connector use metal housing, but plastic housed ST connectors are also used sometimes.

ST connectors are generally three types:

single mode ST UPC fiber optic connector

single mode ST APC fiber optic connector

multimode ST UPC fiber optic connector.

ST connector is with twist-lock bayonet coupling, its 2.5mm keyed ferrule . Typical ST connector use metal housing.

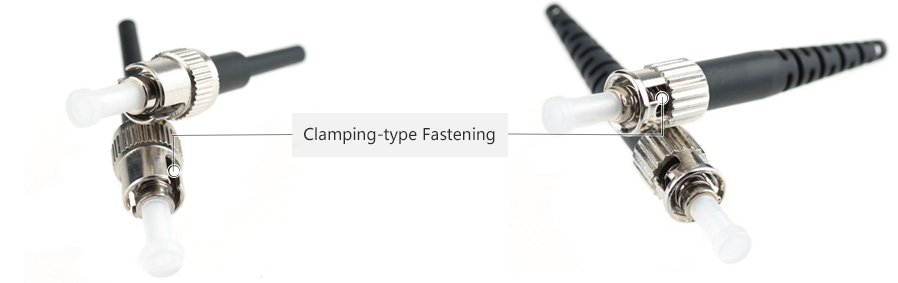

ST connector adopts standard anti-rust and wear-resistant round metal body, and the bayonet is fixed, the connection is firm, and the disassembly is convenient.

High quality ferrules

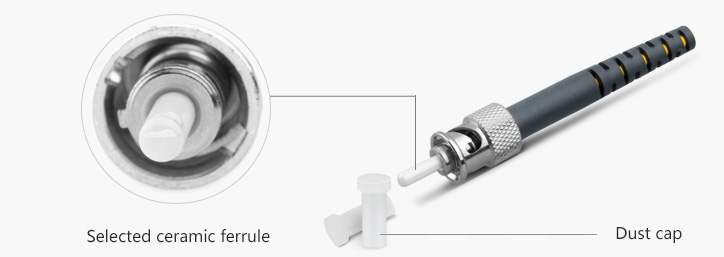

Selected ceramic ferrule, professional grinding technology, precise docking of fiber end face; lower insertion loss ≤0.15dB, making transmission more stable and connection more efficient.

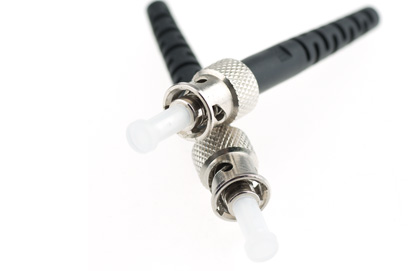

ST connector Ferrul and Dust Cap

Stable parameter performance

The ST connector provided by HYC meets the working environment of -40-85 °C, with an average of more than 500-1000 insertion and removal tests, with stable performance and reliable quality.

Operating temperature：-40-85℃

Insert-pull test：500-1000 times

Multiple styles available.

ST Optical fiber connector are available in a variety of colors and boots.

ST Optical fiber connector 2.0mm BlueST Optical fiber connector 2.0mm BeigeST Optical fiber connector 2.0mm VioletST Optical fiber connector 0.9mm GreenST Optical fiber connector 3.0mm Black

Compliance with international standards

The ST Optical fiber connector can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754-2, IEC 61753-1 and other standards.

Availability of ST connector

Housing kits without ferrule are available.
ST/PC and ST/APC are available.
single mode ST connector & multimode ST connector available
Simplex ST connector & duplex ST connector available

ST connector drawing

ST connector features

Low insertion loss and back reflection loss

Bayonet style housing for easy termination

ST connector specification

SPECIFICATIONS
	Single mode	Multimode
Insertion Loss	≤0.20dB	≤0.25dB
Return Loss	≥55 dB

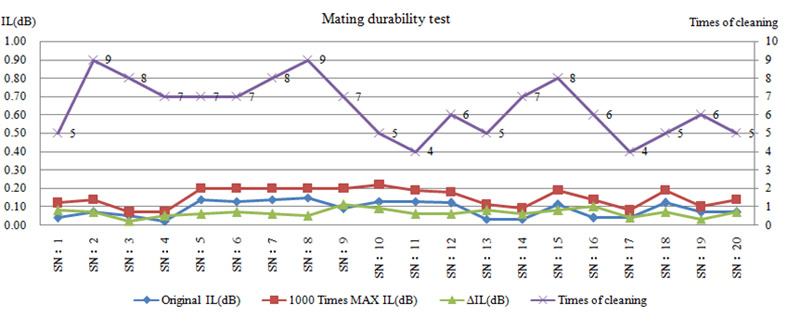

Durability	<0.20 dB typical change, 1000 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C
Ferrule Hole Sizes	125.0+1/-0um, Concentricity: ≤1.0um	125um, Concentricity: 1≤3um
	125.3+1/-0um, Concentricity: ≤1.0um	127um, Concentricity: 1≤3um
	125.5+1/-0um, Concentricity: ≤1.0um	128um, Concentricity: 1≤3um
	126.0+1/-0um, Concentricity: ≤1.0um

ST connector application

Premise installations

Gigabit Ethernet

Active device termination

Telecommunication networks

Video

Multimedia
