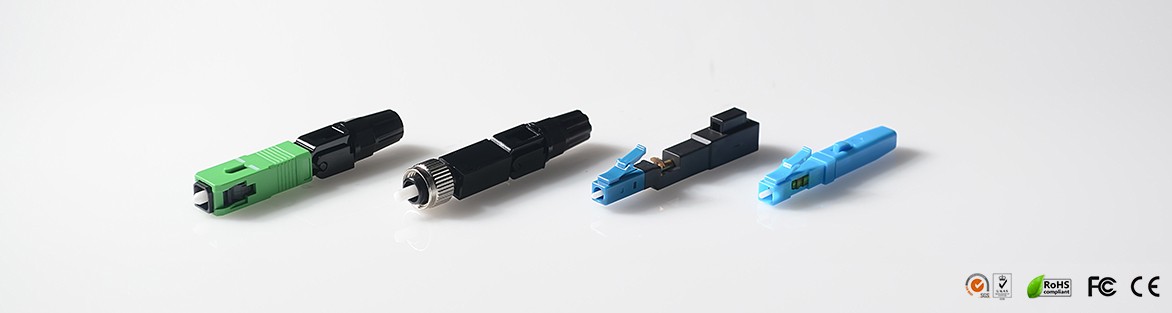

SC UPC Fast Connector Field Assembly Connector Pre-Embedded Fast Field Assembly Connector
SC UPC Fast Connector Field Assembly Connector Pre-Embedded Fast Field Assembly Connector Used to open the FTTH fiber terminal end or In the box, cabinet, such as wiring into the box , Off the back of the accidents such as fiber, maintenance,LAN, wan, data and video transmission ,The construction of the fiber end user access and maintenance ,Optical fiber access of mobile base station.
SC UPC 50mm Field Assembly Fiber Optic Connector Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry
Pre-polished Ferrule Fast Connector
The SC/UPC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.Product Specification| Connector Type | SC | Polishing | UPC |
| Ferrule | Ceramic | Fiber Mode | 9/125um Singlemode |
| Cable Diameters | 0.9/2.0/3.0mm | Dimension | 50mm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥45dB |
| Tension Test | ≥100N | Operating Temperature | -40°C-+75°C |
APPLICATIONS
- Used to open the FTTH fiber terminal end.
- In the box, cabinet, such as wiring into the box.
- Off the back of the accidents such as fiber, maintenance.
- LAN, wan, data and video transmission.
- The construction of the fiber end user access and maintenance.
- Optical fiber access of mobile base station.
Product description
- Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products.
- Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
- With embedded optical fiber type structure .
- Installed with high quality and high success rate and fast and other characteristics .
- Can be reused, the scene is simple.
- Easy to carry
FEATURES
- Single fiber, SC/LC/ST/FC-based connector
- In-line connection available
- Operating temperature: -40° to 85°C
- Cable Diameter Range: 2.0mm, 3.0mm, 2.0*3.0mm
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.35dB | ≤0.15 | ≤0.35dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥45dB | ≥55dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
Key Features & Applications
No epoxy and polishing required Quick and easy fiber termination Precision mechanical alignment insures low insertion loss Superior optical performance Streamlined component design, convenient operation Pre-installed, on-site assembly without end face grinding and consideration Uses proven, molded v-groove technologies Allow optical continuity to be verified by use of visual fault locator (VFL) Fiber optic communication system and telecommunication networks Fiber optic data transmission CATV Optical access network Fibre to the Subscriber (FTTx) applications Optical cable interconnection Maintenance or emergency restoration of fiber networks Repair and replacement requirements Fiber optic equipmentStructure Example

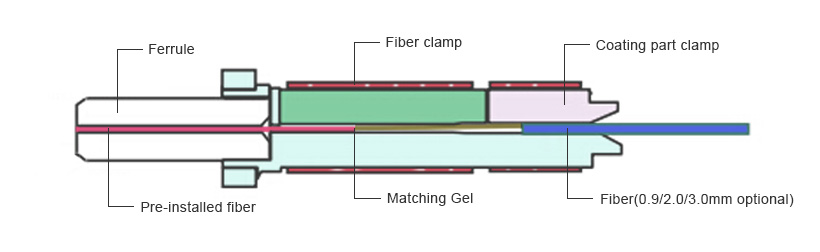

Field Assembly Connectors Structure ExampleInstallation Procedure
Always make sure the fast connectors and optic fiber are clean and clear of any debris.

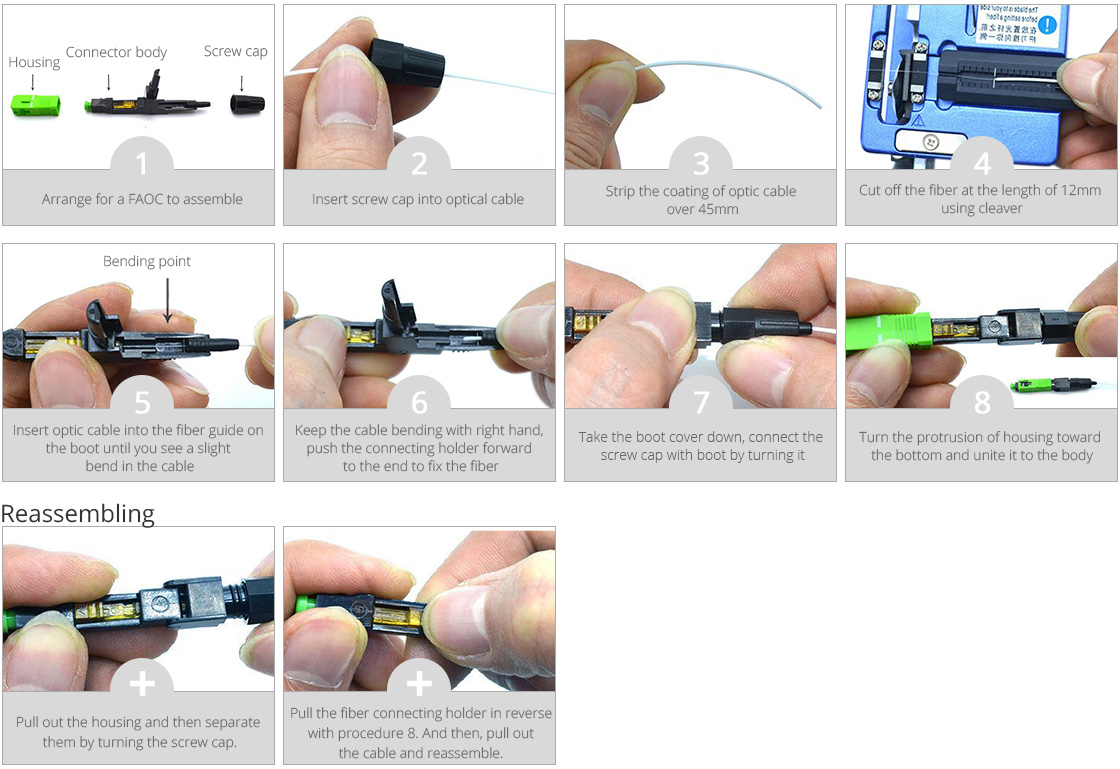

Field Assembly Connectors Installation Procedurehttps://sfiberoptic.com/product/sc-apc-55-60mm-field-assembly-fiber-optic-connector/
