Tight Buffered Fiber production line for making 0.9mm cable
Tight buffer insulating line applied to make tight buffer which the diameter is 0.6mm and 0.9mm. Cable insulation material can be LSZH, PVC.
Main feature: tight buffer producing line easy to operate, The equipment adopts industrial computer and programmable logic control (that is IPC+PLC mode) to realize the line’s synchronal running and the independent operation. Each type cable production data can be record.

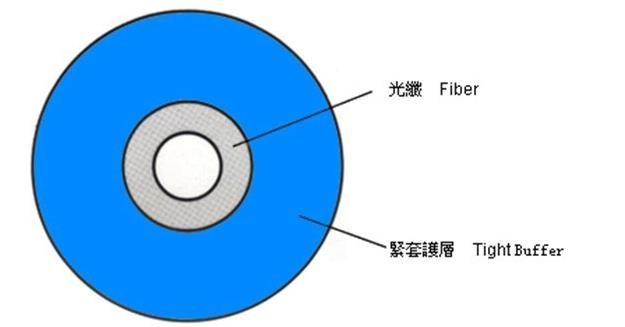

Tight Buffered Fiber production lineOptic fiber cable to make:
Tight buffer production line:
| Number of optical fiber Pay-off | 2 spools |
| Optical fiber pay-off tension | 0.3-1.5N±0.05N |
| Optical fiber reel size | 236x108mmx160 236x236mmx160 |
| Structure speed | 350m/min |
| Working speed | ≦300m/min |
| Tight buffer fiber dia | 0.6mm, 0.9mm |
| Extruded material | PVC, LSZH |
| Extra-attenuation | ≤0.02dB/km(1310nm, 1550nm) |
| Metering accuracy | ≤0.2% |
| Installed power | 28KVA |
| Real power consumption | 19KW/H |
| Operation direction | Appointed by user |
| Line color | Appointed by user |
| Line dimension | 23mx3mx3m |
Tight buffer making line elevation
Our Advantage:
1. 24 hours on-line service, if the machine you order have some problem, you can contact us in time.
2. 20 years experience in cable production line field, well knowledge in different kind of cable, we can provide long time (3-6 months) training for different type cable making method.
3. High quality cable equipment but with competive price.
4. Cable extruder machine delivery on time.
5. Wish long-term relationship and mutual benefit with our customer.
Technical parameters:
| Machine Type | 35/26D |
| Specification optical fiber pay off reels | 236 *160*108*25.4mm 236*160*225*25.4mm |
| Pay off tension | 0.4N-1.5N±0.05N |
| Fiber diameter | 0.25mm |
| Tight fiber diameter | Ф0.6mm/Ф0.9mm |
| Design speed | 300m/min |
| Actual speed | ≤250m/min |
| Line length | 21m |
| Take up tension | 0.5N-3N(adjustable) |
Machine main electric brand:
Motor: Siemens (China) Motor
Transducer: American Emerson transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2-inch color
PLC and Control Module: Siemens
Screw and Barrel: Producedbyjinhu Company.
Bearing: Japan NSKorother same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands, etc.
